Прободелитель с вращающейся трубой PT 200

На этой странице Вы можете запросить коммерческое предложение.

Пожалуйста, выберите интересующие Вас товары и они будут добавлены в список запроса. Вы можете выбрать товары со страницы каждого прибора. Корзина товаров находится в правом верхнем углу веб-сайта.

Если Вы не уверены в том, что именно Вам нужно, то направьте нам, пожалуйста, общий запрос, и мы свяжемся с Вами для уточнения требуемой информации.

Общий Запрос

Не уверены, какие товары Вам нужны, или Вы предпочитаете общее предложение?

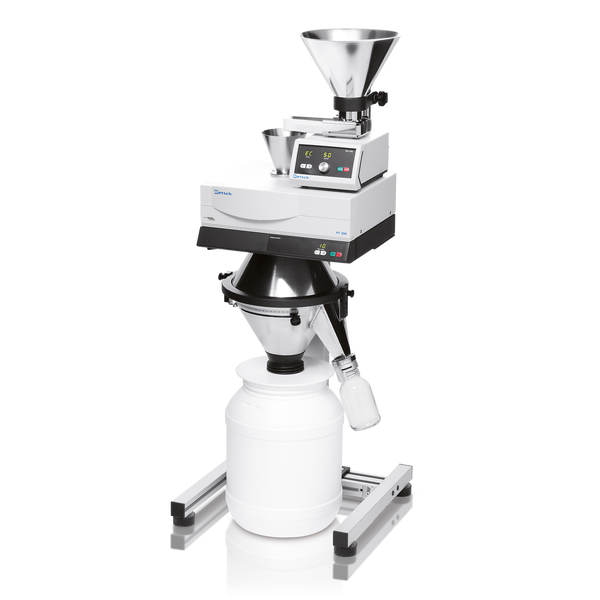

Прободелитель с вращающейся трубой PT 200

PT 200 drive unit
incl. 10 sample bottles 500 ml and collecting receptacle 26 litres
(please order vibratory feeder, feeding kit and bottom cone separately)
40.412.0004
PT 200 основной блок100–240 В, 50/60 Гц


Нижние конусы и принадлежности PT 200

Помощь в выборе
Помощь в выборе
The maximum dividing ratio depends on the maximum slot width which can be set on the bottom cone. This differs between the three bottom cones which are available.

The smallest dividing ratio depends upon the maximum particle size of the sample since the slot width should be at least 3 times wider than the maximum particle size. This means that smaller fractions can be taken from smaller particle sizes.

The slot width “X” to be set can be calculated from the ratio of the required fractional amount “QT” to the initial sample amount “QA” multiplied by the fixed pitch circumference “U” of the bottom cone (U = 795 mm for all bottom cones).

X = (QT/QA) x U

Example:

A representative sample of 200 ml is to be taken from an initial sample amount

of 5000 ml (dividing ratio 1:25). X = (200 ml / 5000 ml) x 795 mm = 32 mm. This means that the slot width must be set to 32 mm.

Please note: The sample amount should be sufficiently large to represent the initial amount.

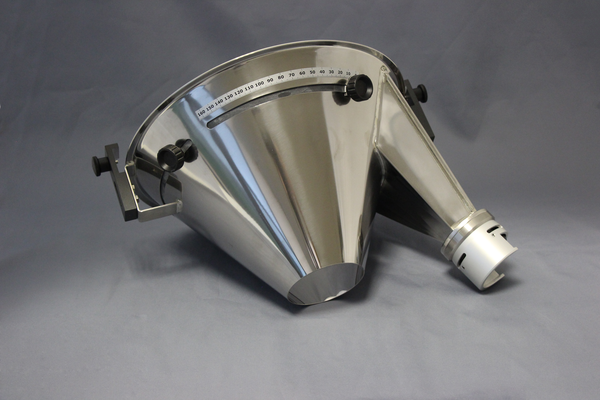

42.787.0010Нижний конус с 1 выпускным отверстием для пробы, резьба GL 55, ширина паза
159 мм, регулируемое соотношение деления макс. 1 : 5

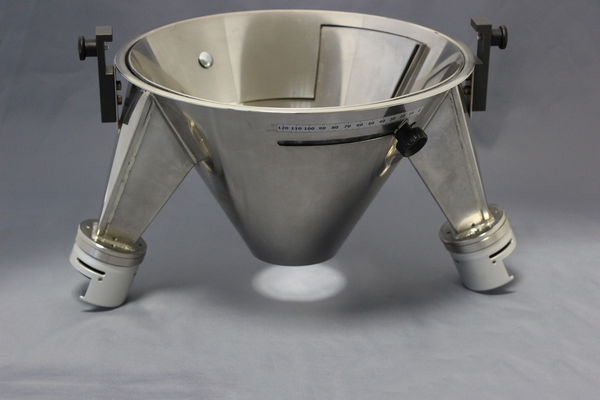

42.787.0011Нижний конус с 2 выпускными отверстиями для пробы, резьба GL 55, ширина паза
110 мм, регулируемое соотношение деления макс. 2 х 1 : 7.2
42.787.0012Нижний конус с 3 выпускными отверстиями для пробы, резьба GL 55, ширина паза
53 мм, регулируемое соотношение деления макс. 3 х 1 : 15

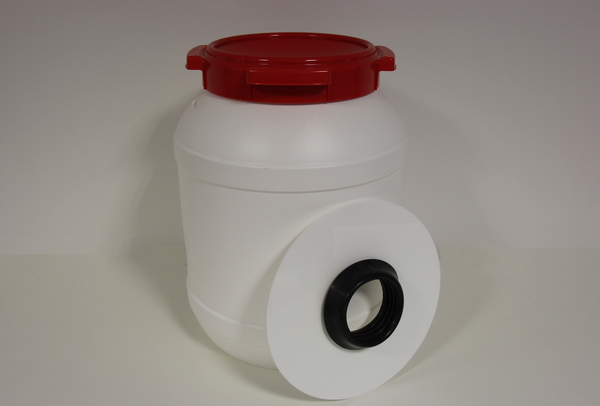

22.003.0013Приемный сосуд, 26 литров, пластик
22.523.0001Широкогорлые бутыли, 250 мл, 10 шт
22.523.0002Широкогорлые бутыли, 500 мл, 10 шт


Дополнительные принадлежности PT 200

99.200.0022IQ/OQ Документация для PT 200


Vibratory Feeder DR 100 PT 200

DR 100 drive unit (please order feeding kit sieve separately)
70.938.0001
DR 100 основной блок220–240 В, 50 Гц
70.938.0002
DR 100 основной блок110–120 В, 60 Гц
72.020.0022Feeding kit DR 100/3.5 litres for PT 200,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute,
hopper 3.5 litres, fixture for hopper and data cable
72.020.0023Feeding kit DR 100/22 litres for PT 200,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute,
hopper 22 litres, fixture for hopper and data cable
