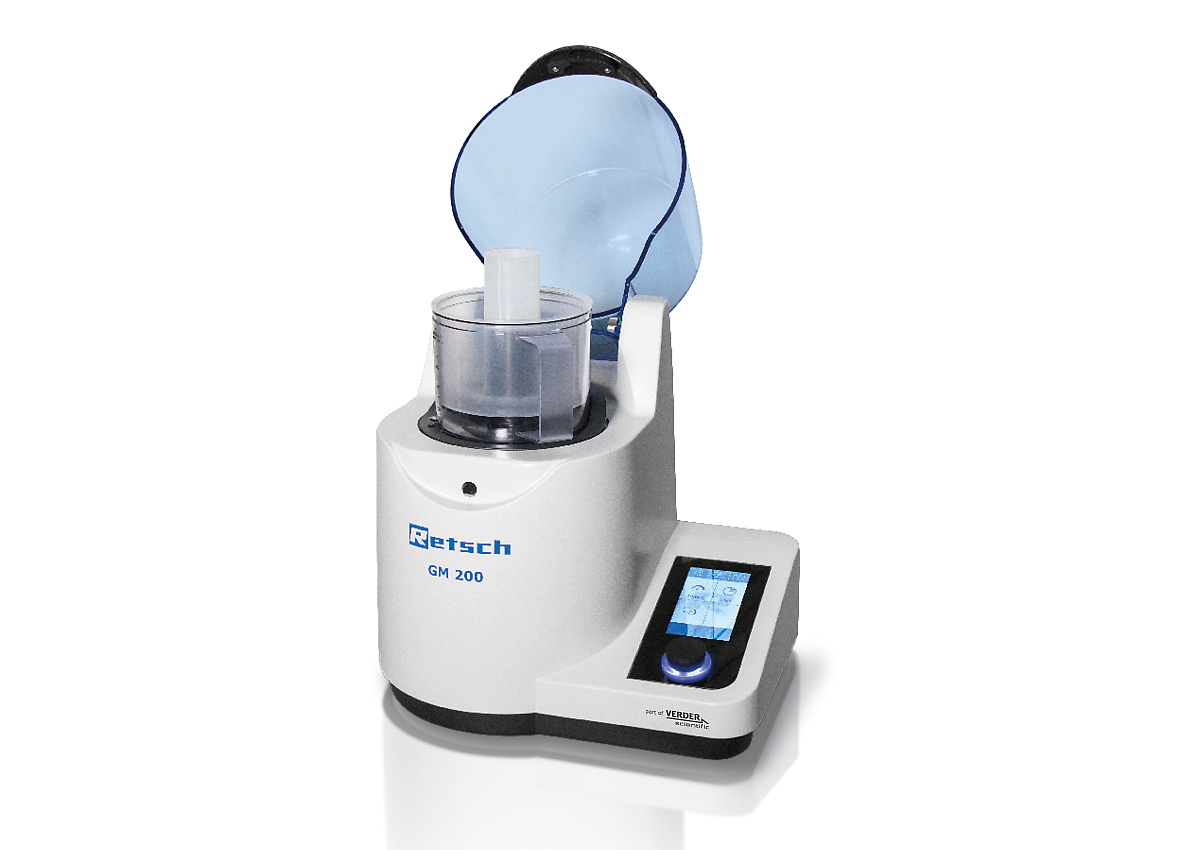

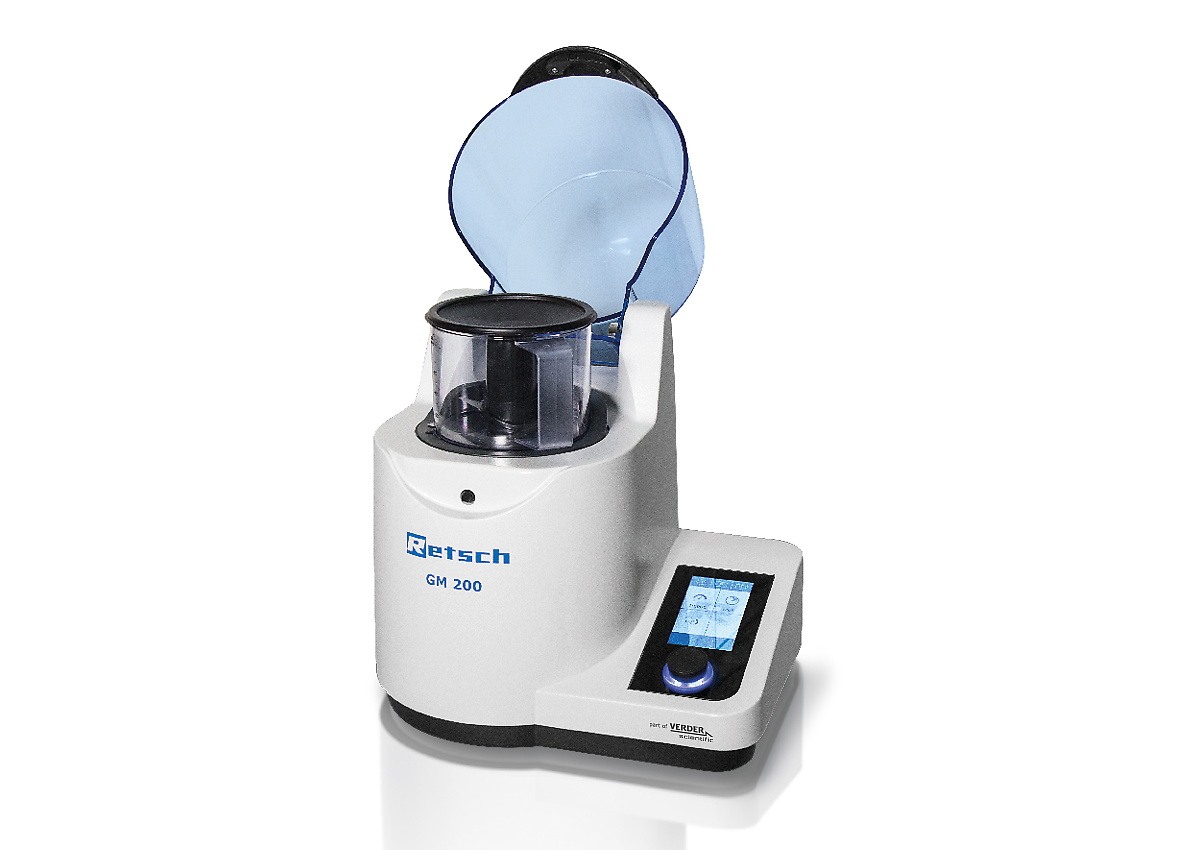

Knife Mill GRINDOMIX GM 200
The new knife mill GRINDOMIX GM 200 is the ideal instrument for grinding and homogenizing foods and feeds. It allows to process sample volumes up to 0.7 liters quickly and reproducibly.
With two sharp, robust blades and a powerful motor, it is ideal for homogenizing substances with a high water, oil or fat content as well as for grinding dry, soft and medium-hard products. A wide selection of lids and containers allows for adaptation of the mill to individual application requirements. The GRINDOMIX GM 200 meets and exceeds all special laboratory and analytical requirements and is a professional device superior to any commercial household mixer.
Примеры применения
масляничные семена, мыло, мясо, окорока, овощи, орехи, пищевые добавки, продукты глубокой заморозки, зерна какао, злаки, злаковые батончики, конфета, колбасы, растения, рыба, салат-латук, специи, сушеные и свежие фрукты, сыр, таблетки комбикорма, таблетки с покрытием, фармацевтические продукты, ...
Преимущества оборудования
- efficient size reduction of up to 700 ml feed quantity due to a powerful 900 W motor
- pre- and fine-grinding in one mill: cutting action in regular mode, grinding by impact in reverse mode, pre-grinding in interval mode
- all parts which come into contact with the sample material are autoclavable
- perfect adaptation to application requirements by variable speed from 2.000 to 10.000 min-1 with an increment of 100 min-1
- optional gravitation lid for automatic reduction of the grinding chamber volume
- 3 SOPs can be stored

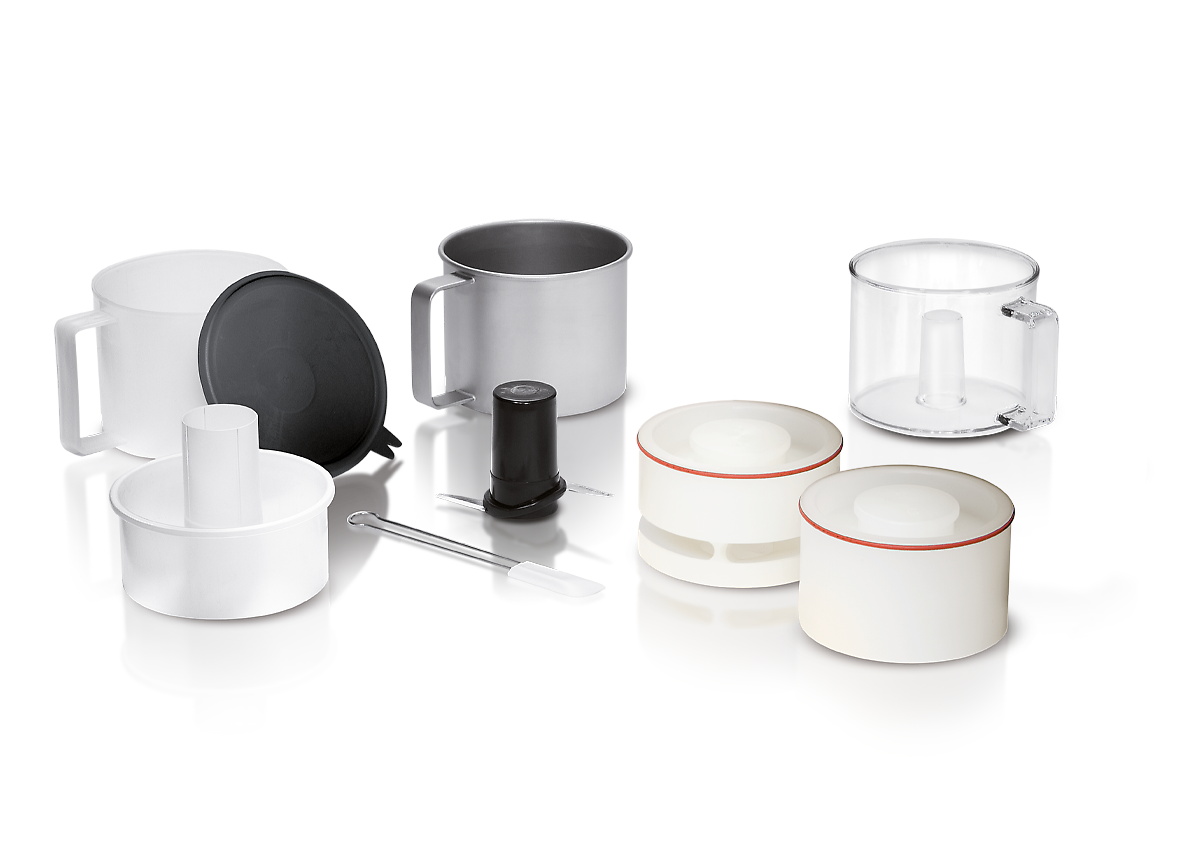

- grinding jar in plastic, stainless steel and glass available
Характеристики
| Использование | измельчение, гомогенизация, смешивание |
| Область применения | медицина / фармацевтика, Сельское хозяйство, пищевые продукты, Биология |
| Исходный материал | мягкий, средней твердости, эластичный, содержание воды / жира / масла, сухой, волокнистый |
| Принцип измельчения | резка |
| Исходный размер частиц* | 40 mm |
| Конечная тонкость* | < 300 µm |
| Размер загрузки / полезный объем* | with standard lid 700 ml with reduction lid 300 ml with gravity lid 300 - 600 ml |
| Объем размольной камеры с | with standard lid 1000 ml with reduction lid 500 ml with gravity lid 400 - 800 ml |
| Скорость при 50 Гц (50 Гц) | digital, 2.000 - 10.000 min-1 |
| Материал мелющих средств | blade: stainless steel / titanium fixation of blade: PVDF container: autoclavable plastic / plastic PP / stainless steel / glass |
| Установка времени измельчения | цифровой, 1 с - 3 мин |
| Установка интервала | да |
| Storable SOPs | 3 |
| Привод | двигатель с характеристикой серии |
| Мощность привода | ~ 900 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Система безопасности | grinding chamber and keypad IP 42 |
| Потребляемая мощность | ~ 900 W |
| Ш х В х Гл в закрытом виде | 350 x 275 x 392 mm (opened: 350 x 410 x 553) |
| Вес нетто | ~ 10 kg |
| Standards | CE |
Принцип работы

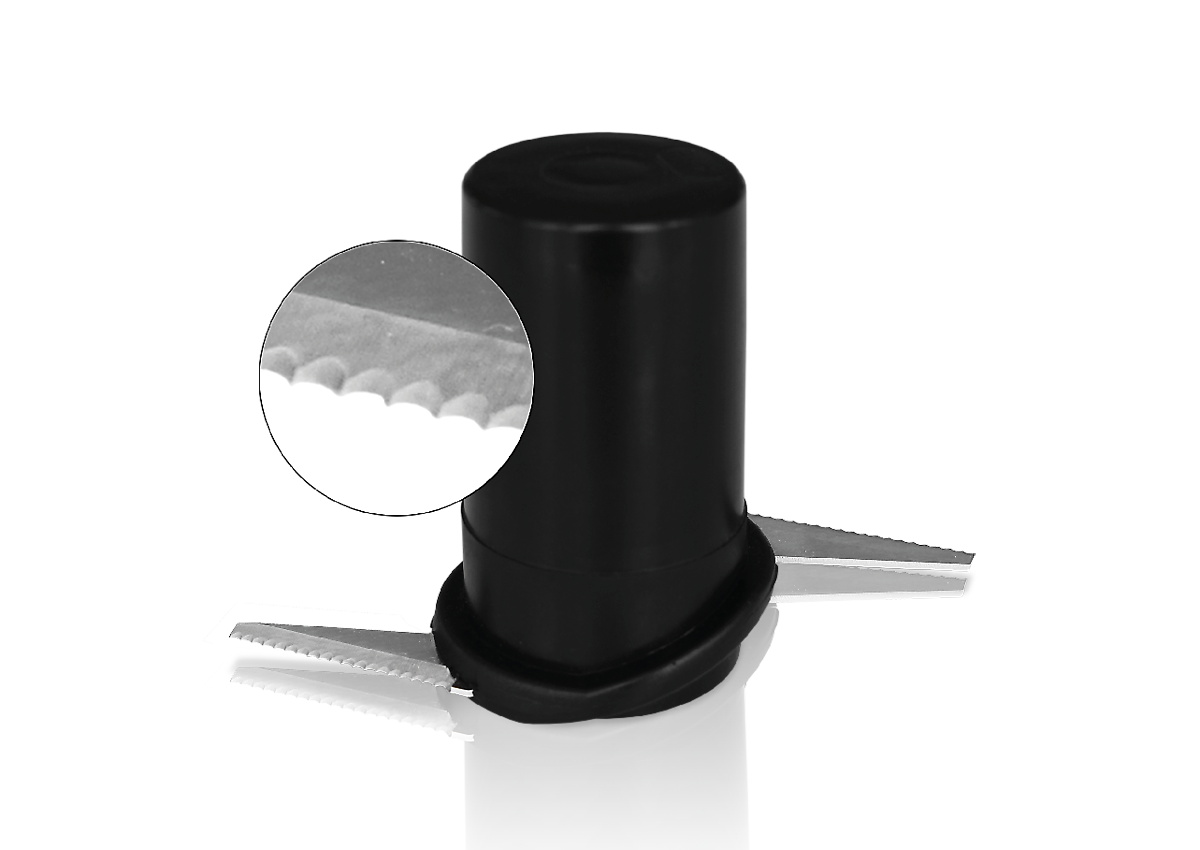

Two sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding).
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
Subject to technical modifications and errors
